Variable Frequenzantriebe (VFDs)

145x39

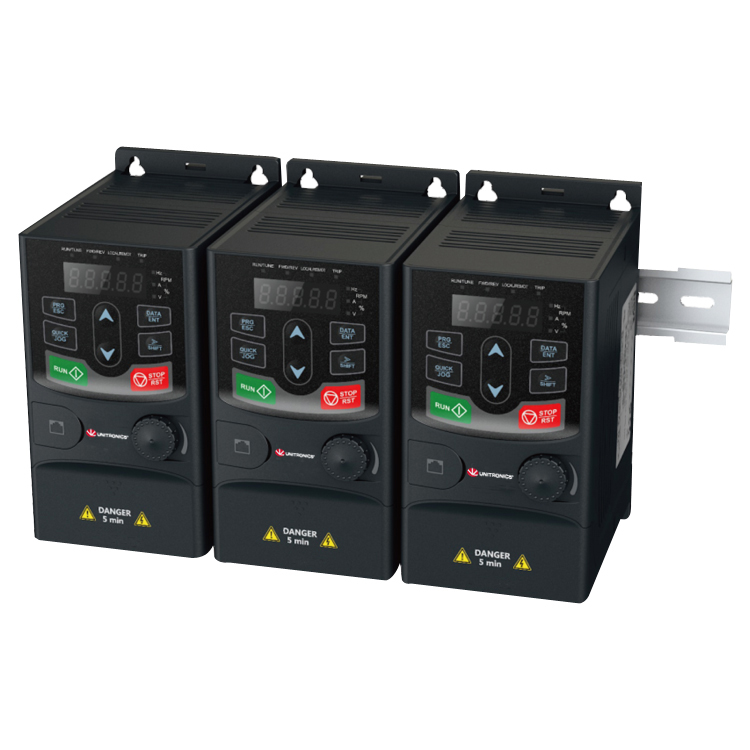

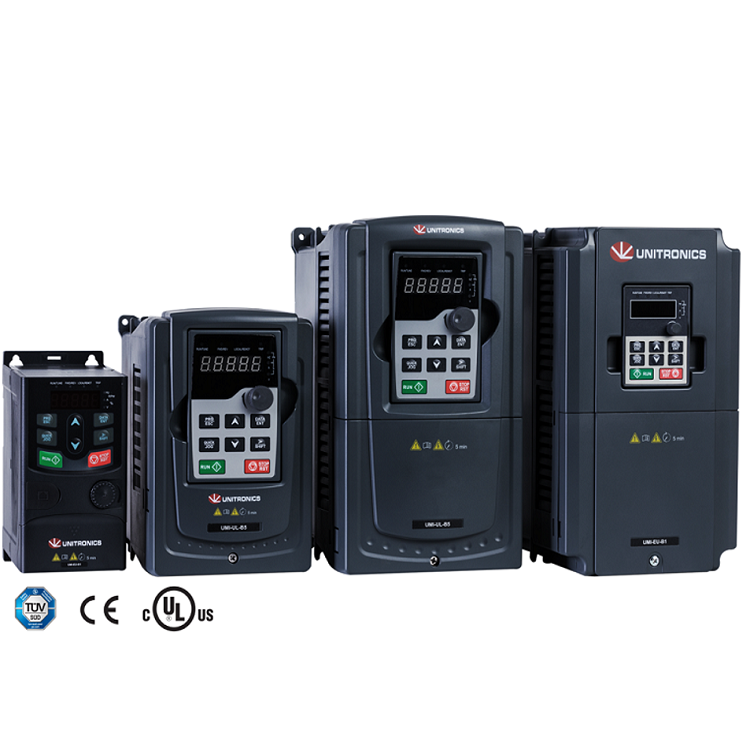

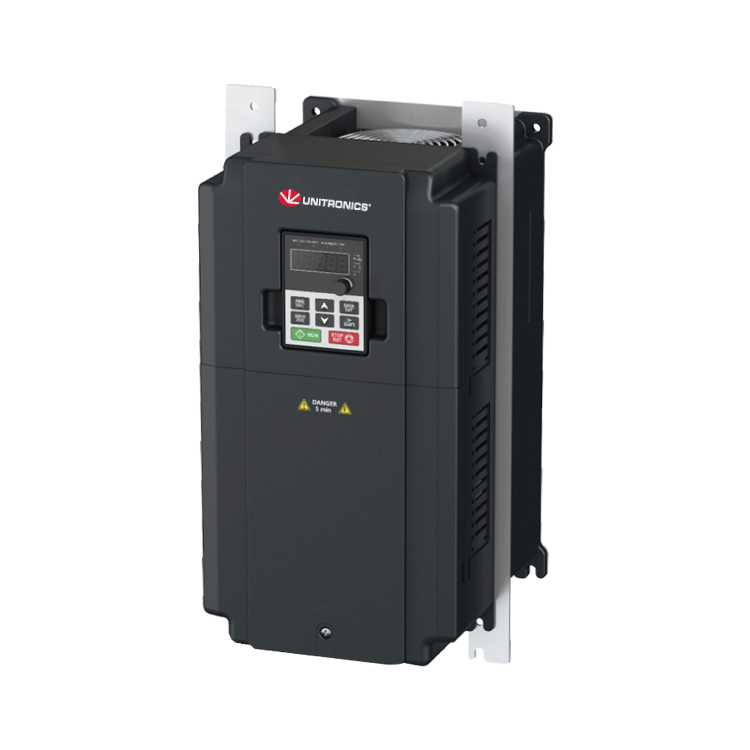

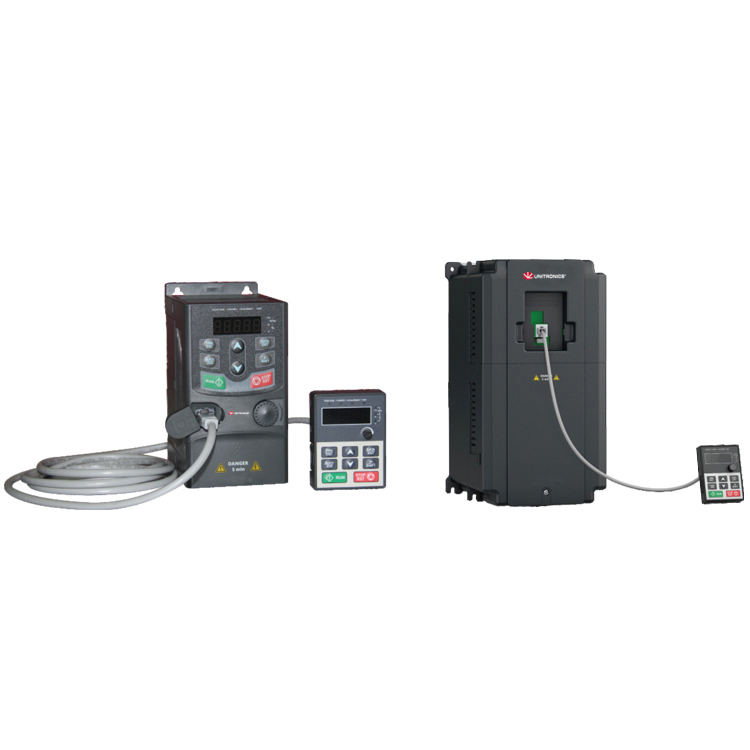

Leistungsfähige, kostengünstige VFDs für die Maschinen- und Prozesssteuerung. Unitronics VFDs sind erhältlich als ein- oder dreiphasige VFDs mit einer Leistung von 0,4 kW bis 500 kW. Die Unitronics VFDs können als eigenständiges Produkt oder als Bestandteil eines kompletten All-in-One-Pakets mit unseren Controllern eingesetzt werden.

VFD: Einfache Programmierung. Bedienerfreundlich

Die Unitronics VFDs können als eigenständiges Produkt oder im Rahmen einer All-in-One-Lösung eingesetzt werden: VFD, Controller und HMI

Dies vereinfacht den Workflow und bietet Ihnen die folgenden Möglichkeiten:

UniLogic – mehrfach ausgezeichnete Software
jetzt mit VFD-Integration

Unilogic screens
Produktspezifikationen
UMI-B1 EUUMI-B5 ULUMI-B7
PowerInput Voltage200-240VAC, Single Phase
380-440VAC, Three Phase
380-480VAC, Three Phase (≤11kW/15HP)
200-240VAC, Three Phase
380-480VAC, Three Phase
200-240VAC, Three Phase
380-480VAC, Three Phase
520-600VAC, Three Phase

Input Frequency50/60Hz
Supported MotorsAsynchronous Induction MotorsAsynchronous Induction Motors,Permanent Magnet Synchronous
Output Frequency0-400Hz
Overload Capacity150%, 60 seconds, 180%, 10 seconds, 200%, 1 second
ControlControl MethodSVPWM (Space Vector PWM)
SVC (Sensorless Vector Control)
SVPWM (Space Vector PWM)
VC (Closed loop vector control)
SVC (Sensorless Vector Control)
Control SettingMODBUS, Analog, Digital, PID, PulseMODBUS, Analog, Digital, PID, Pulse,veriety of communication cards
CommunicationMODBUS RTU RS-485Build in MODBUS RTU RS-485 + optional communication cards (see catalog)
InputAnalog InputsTotal 2:
1 input 0-10V,
0-20mA
1 input 0-10V
Total 3:
2 inputs 0-10V, 0-20mA
1 input 0-10V
Total 2: AI1: 0-10V/0-20mA , AI2: -10->10V
Digital InputsTotal 5:
4 inputs 1kHz
1 input 50kHz
Total of 9:
8 regular inputs; max.frequency:1kHz;
internal impendence:3.3kOhm
1 high-speed inputs ; max frequency:50kHz
Total of 6:
4 regular inputs; max.frequency:1kHz;
internal impendence:3.3kOhm
2 high-speed inputs ; max frequency:50kHz
OutputAnalog OutputsUp to 2 outputs:
1 output 0-10V/0-20mA (≤2.2kW/3HP)
2nd output available for (>2.2kW/3HP)
2 outputs, 0-10V, 0-20mA1 output, 0-10V/0-20mA
Digital Outputs1 output sink/sourceTotal of 2:
1 output sink/source,
1 output 50kHz
Relay Outputs
Total 2 Programmable Multi-functional outputs
FeaturesDynamic Braking UnitBuilt-in (≤30kW/40HP)
Optional (>30kW/40HP)
Built-in for VFDs of 220V (≤15kW)
and 480V (≤30kW)
Optional for VFDs of 220V (18.5-55kW),
480V (≥37kW)
EMC FiltersBuilt-In C3, Comply with IEC/ 61800-3
Expansion cardsNoneYes, I/O cardsMax 3 Expansion cards: Communication cards, PG cards, I/O cards
GeneralOperating Temperature(-10)°C/14°F – 50°C/122°F
(de-rated by 1% for every 1°C/2°F above 40°C/104°F)
Enclosure RatingIP20
Mounting OptionsWall and RailWall, Flange and Floor
CoolingAir-Cooling
Safe Torque OffIntegratedNoIntegrated
ApprovalsCE, TÜV-SUD Safety Mark, UL
and cUL (≤11kW/15HP)
CE, UL and cUL
Serie UMI-B1 – STO, TÜV SÜD – zertifiziert
Article NumberRated Output Power kWRated Output Power HPInput Voltage
UMI-0004BE-B10.40.5200-240V Single Phase
UMI-0007BE-B10.751200-240V Single Phase
UMI-0015BE-B11.52200-240V Single Phase
UMI-0022BE-B12.23200-240V Single Phase
UMI-0007EE-B10.751380-440V Three Phase
UMI-0015EE-B11.52380-440V Three Phase
UMI-0022EE-B12.23380-440V Three Phase
UMI-0040EE-B145380-440V Three Phase
UMI-0055EE-B15.57.5380-440V Three Phase
UMI-0075EE-B17.510380-440V Three Phase
UMI-0110EE-B11115380-440V Three Phase
UMI-0150EE-B11520380-440V Three Phase
UMI-0185EE-B118.525380-440V Three Phase
UMI-0220EE-B12230380-440V Three Phase
UMI-0300EE-B13040380-440V Three Phase
UMI-0370EE-B13750380-440V Three Phase
UMI-0450EE-B14560380-440V Three Phase
UMI-0550EE-B15575380-440V Three Phase
UMI-0750EE-B175100380-440V Three Phase
UMI-0900EE-B190120380-440V Three Phase
UMI-1100EE-B1110150380-440V Three Phase
Serie UMI-B1 – UL – zertifiziert
Article NumberRated Output Power kWRated Output Power HPInput Voltage
UMI-0004BU-B10.40.5200-240V Single Phase
UMI-0007BU-B10.751200-240V Single Phase
UMI-0015BU-B11.52200-240V Single Phase
UMI-0022BU-B12.23200-240V Single Phase
UMI-0004CU-B10.40.5200-240V Three Phase
UMI-0007CU-B10.751200-240V Three Phase
UMI-0007EU-B10.751380-480V Three Phase
UMI-0015EU-B11.52380-480V Three Phase
UMI-0022EU-B12.23380-480V Three Phase
Serie UMI-B5 – UL – zertifiziert
Article NumberRated Output Power kWRated Output Power HPInput Voltage
UMI-0007CU-B50.751200-240V Three Phase
UMI-0015CU-B51.52200-240V Three Phase
UMI-0022CU-B52.23200-240V Three Phase
UMI-0040CU-B545200-240V Three Phase
UMI-0055CU-B55.57.5200-240V Three Phase
UMI-0075CU-B57.510200-240V Three Phase
UMI-0110CU-B51115200-240V Three Phase
UMI-0150CU-B51520200-240V Three Phase
UMI-0185CU-B518.525200-240V Three Phase
UMI-0220CU-B52230200-240V Three Phase
UMI-0300CU-B53040200-240V Three Phase
UMI-0370CU-B53750200-240V Three Phase
UMI-0450CU-B54560200-240V Three Phase
UMI-0550CU-B55575200-240V Three Phase
UMI-0015EU-B51.52380-480V Three Phase
UMI-0022EU-B52.23380-480V Three Phase
UMI-0040EU-B545380-480V Three Phase
UMI-0055EU-B55.57.5380-480V Three Phase
UMI-0075EU-B57.510380-480V Three Phase
UMI-0110EU-B51115380-480V Three Phase
UMI-0150EU-B51520380-480V Three Phase
UMI-0185EU-B518.525380-480V Three Phase
UMI-0220EU-B52230380-480V Three Phase
UMI-0300EU-B53040380-480V Three Phase
UMI-0370EU-B53750380-480V Three Phase
UMI-0450EU-B54560380-480V Three Phase
UMI-0550EU-B55575380-480V Three Phase
UMI-0750EU-B575100380-480V Three Phase
UMI-0900EU-B590120380-480V Three Phase
UMI-1100EU-B5110150380-480V Three Phase

Dokumente Herunterladen 

Benutzerhandbuch

File Name

UMI-B1-EU-V1.2

UMI-B5-UL-V1.0

UMI-B1-UL-V1.0

Zubehör

File Name

VFD Optional Parts

Download
